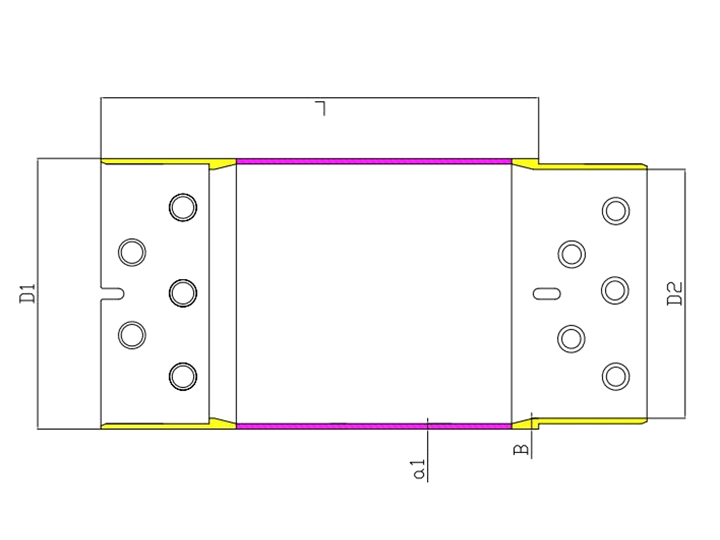

單壁雙排套管單壁雙排套管平面圖| 型號D1/D2 | 長度L+GK | 管身a1 | 接頭B | ||||
| mm | 3m | 4m | 5m | 6m | 8m底靴 | mm | mm |
| 800/700 | 1832 | 2332 | 2833 | 3334 | 4530 | 25 | 50 |
| 900/800 | 2072 | 2638 | 3204 | 3770 | 5122 | 25 | 50 |
| 1000/900 | 2593 | 3346 | 4099 | 4852 | 6605 | 30 | 50 |
| 1100/1000 | 2862 | 3693 | 4524 | 5355 | 7289 | 30 | 50 |
| 1200/1100 | 3130 | 4038 | 4946 | 5854 | 7968 | 30 | 50 |
| 1300/1200 | 3400 | 4386 | 5372 | 6358 | 8653 | 30 | 50 |
| 1400/1300 | 3670 | 4734 | 5798 | 6862 | 9340 | 30 | 50 |
| 1500/1400 | 3937 | 5078 | 6219 | 7360 | 9924 | 30 | 50 |
| 1600/1500 | 4208 | 5427 | 6646 | 7865 | 10604 | 30 | 50 |
| 1700/1600 | 4478 | 5775 | 7072 | 8369 | 11283 | 30 | 50 |
| 1800/1700 | 4745 | 6119 | 7493 | 8867 | 11955 | 30 | 50 |
| 2000/1900 | 5285 | 6815 | 8345 | 9875 | 13314 | 30 | 50 |
| 2200/2080 | 6202 | 7887 | 9572 | 11257 | 15126 | 30 | 60 |
| 2400/2280 | 7470 | 9613 | 11755 | 13897 | 18908 | 35 | 60 |
| 2600/2480 | 8106 | 10430 | 12754 | 15078 | 20515 | 35 | 60 |
| 3000/2860 | 11314 | 14378 | 17442 | 20506 | 27015 | 40 | 70 |
| 3200/3050 | 12376 | 15647 | 18918 | 22189 | 29424 | 40 | 75 |
| 4000/3850 | 15525 | 19625 | 23725 | 27825 | 36893 | 40 | 75 |
